MARSTON ANAEROBE PIPE THREAD SEALANT

MARSTON-DOMSEL pipe thread seals with and without PTFE secure and seal threads against gas, water, hydrocarbons, oil, liquid gas and many chemicals.

Replaces hemp, Teflon and also solid seals
Parts can be aligned directly after assembly
High-quality seal
Additional protection against corrosion
Temperature resistant from 150°C to 200°C
DVGW approval

Areas of application:

The shipbuilding industry, pump construction, sanitary applications, tractor construction, the motor and electrical industries, turbines and nuclear power stations, engineering and gear manufacture, the foodstuffs industry, mining, gas, water and electricity works etc

User instructions:

With 670, 675 and 698, pre-treat the surface with MD Activator No. 11 when working below 5°C. All parts must be clean, dry and dust-free – clan them beforehand with MARSTON Cleaner.

new!

ANAEROBIC IN THE 20 G SOFT BOTTLE – EXTRA SOFT BOTTLE FOR EFFORTLESS APPLICATION

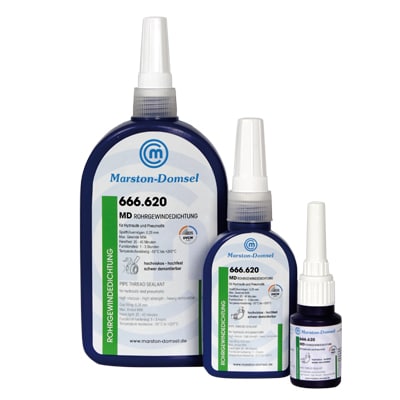

MD.MRG.666.620

DVGW approval

high viscosity – high strength – difficult to disassemble

max. thread:   M56
gap-filling:   0,25 mm
breakaway:   28 -36 Nm
curing time handling:   20 – 40 minutes
curing time functional:   1 – 3 hours
temperatur resistance:   -55°C to + 200°C
Color: green

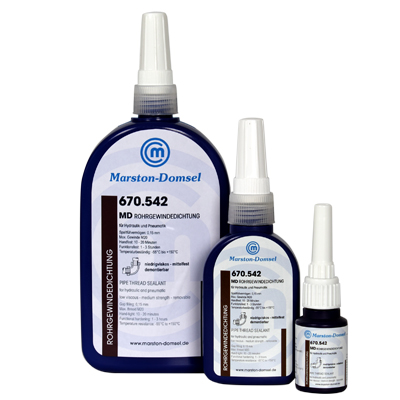

MD.MRG.670.542

low viscosity – medium strength – to disassemble

max. thread:   M20
gap-filling:   0,15 mm
breakaway:   12 – 16 Nm
curing time handling:   10 – 20 minutes
curing time functional:   1 – 3 hours
temperatur resistance:   -55°C to + 150°C
Color: brown

MD.MRG.675.577

DIN-DVGW-NG-5146BU0369 according to DIN EN 751-1 Class H.
NSF Listed P1 (Reg. No. 154174 )

high viscosity – medium strength – to disassemble

max. thread:   M80
gap-filling:   0,50 mm
breakaway:   18 – 22 Nm
curing time handling:   30 – 40 minutes
curing time functional:   1 – 3 hours
temperatur resistance:   -55°C to + 150°C
Color: yellow

MD.MRG.6750K.5770

without hazard and safety phrases ! WRAS certificate 1.701.545

high viscosity – medium strength – to disassemble

max. thread:   M80
gap-filling:   0,50 mm
breakaway:   18 -22 Nm
curing time handling:   15 – 30 minutes
curing time functional:   1 – 3 hours
temperatur resistance:   -55°C to + 150°C

MD.MRG.676.576

high viscosity – medium strenght – to disassemble

max. thread:   M56
gap-filling:   0,25 mm
breakaway:   8 – 12 Nm
curing time handling:   10 – 15 minutes
curing time functional:   1 – 4 hours
temperatur resistance:   -55°C to + 180°C
Color: blue

MD.MRG.678.511

high viscosity – low strength – easy to disassemble

max. thread:   M80
gap-filling:   0,30 mm
breakaway:   7 -10 Nm
curing time handling:   20 – 40 minutes
curing time functional:   1 – 3 hours
temperatur resistance:   -55°C to + 150°C
Color: white

Packaging:

Content	Unit	Packaging
20 g	12	bottle /display
50 g	12	bottle /display
250 g	6	bottle
15 g	12	Pumpdispenser/display
50 g	12	Pompdispenser/display
50 g	12	Tube
100 g	10	Tube
250 g	6	Tube
